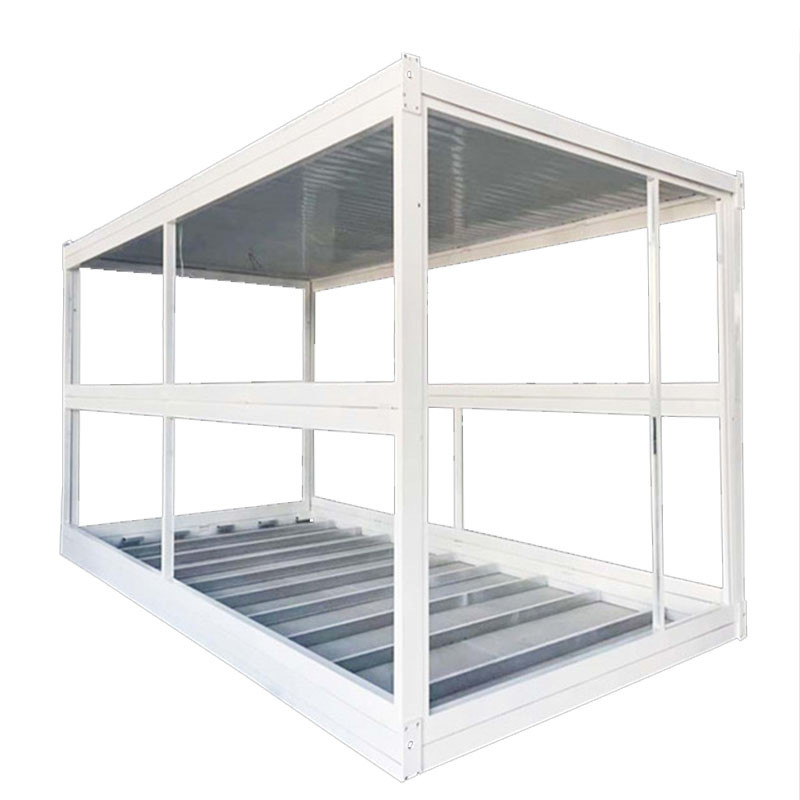

This folding container house can be folded repeatedly, recycled, in line with emergency living standards.
It is widely used for labor camp, office, dormitories, and storeroom.
We have shipped prefab houses to more than 60 countries. Australia, New Zealand, the United States, Canada, France, Sweden, Qatar,Peru, Brazil, Malaysia, Philippines, India and other countries. We also often provide container houses for the Chinese government.
Folding Container Parameters
| Supporting equipment: | Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. | Roof bearing: 50 Kg/m² Floor bearing capacity: 150 kg/m² |
| Floor: Adopt A-glass Fire-proof board. | Walkway bearing capacity: 200 kg/m². Wall side pressure: 80 kg/ m². |
| Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. | Wall deformation coefficient: 300 kg/ m² |
| Security door: Anti-theft Steel door is to be used. | Fire resistance rating: Grade A fire resistance, |
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. | Anti Earthquake: 10 Grade. |
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. | Anti- wind resistance rating: 11 wind resistance rating |
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm |
| Height | 2450mm |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate |
| Ground | 15mm A-class fire-resistant cloth board |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel
|
Advatage:
Stable Structure: Discard traditional technique for many splicing welding points with the defects such as large error, roughness, deformation and wear, and time-consuming, Anhui Grande selects professional assembly-line equipment for production of automobile grade galvanized steel can make error-free, multi-faceted structure, high strength, process saving and labor cost saving products.
Technical Details
Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
